Olympic Azimuth Drives

Olympic Azimuth Drives are heavy duty, 360 degree steerable marine propulsion units designed for continuous operation in tough work boat applications. Combining marine propulsion and power steering mounted in one watertight housing, Olympic Drives replace conventional marine gears, propeller shafts, stuffing boxes, shaft struts, propellers and bearings, rudders, rudder stocks, hydraulic steering with one easily installed package.

Our steerable drives have a full power follow up, hydraulic steering system delivering propeller thrust throughout an endless 360 degree rotation. This provides the vessel with positive and powerful vessel control in all directions.

The Olympic Z-Drive is often used in shallow waters increasing the risk of having the propeller strike the bottom or other obstructions. To protect the internal gears, Olympic Drives utilizes a special shear pin equipped input coupling. Further, replacing the shear pins is done from inside the hull minimizing the down time or the need to haul the vessel.

The Olympic steerable drives are easily mounted, using our proprietary mounting ring & neoprene seal.

Manufactured by Olympic Drives & Equipment Ltd, Olympic Steerable Drives is a name you can trust. To find out how these tough azimuth drives can improve your vessels performance, please contact us.

Click Logo for product specifications.
Click Here to compare models.

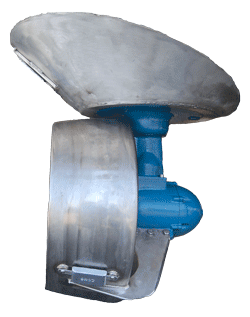

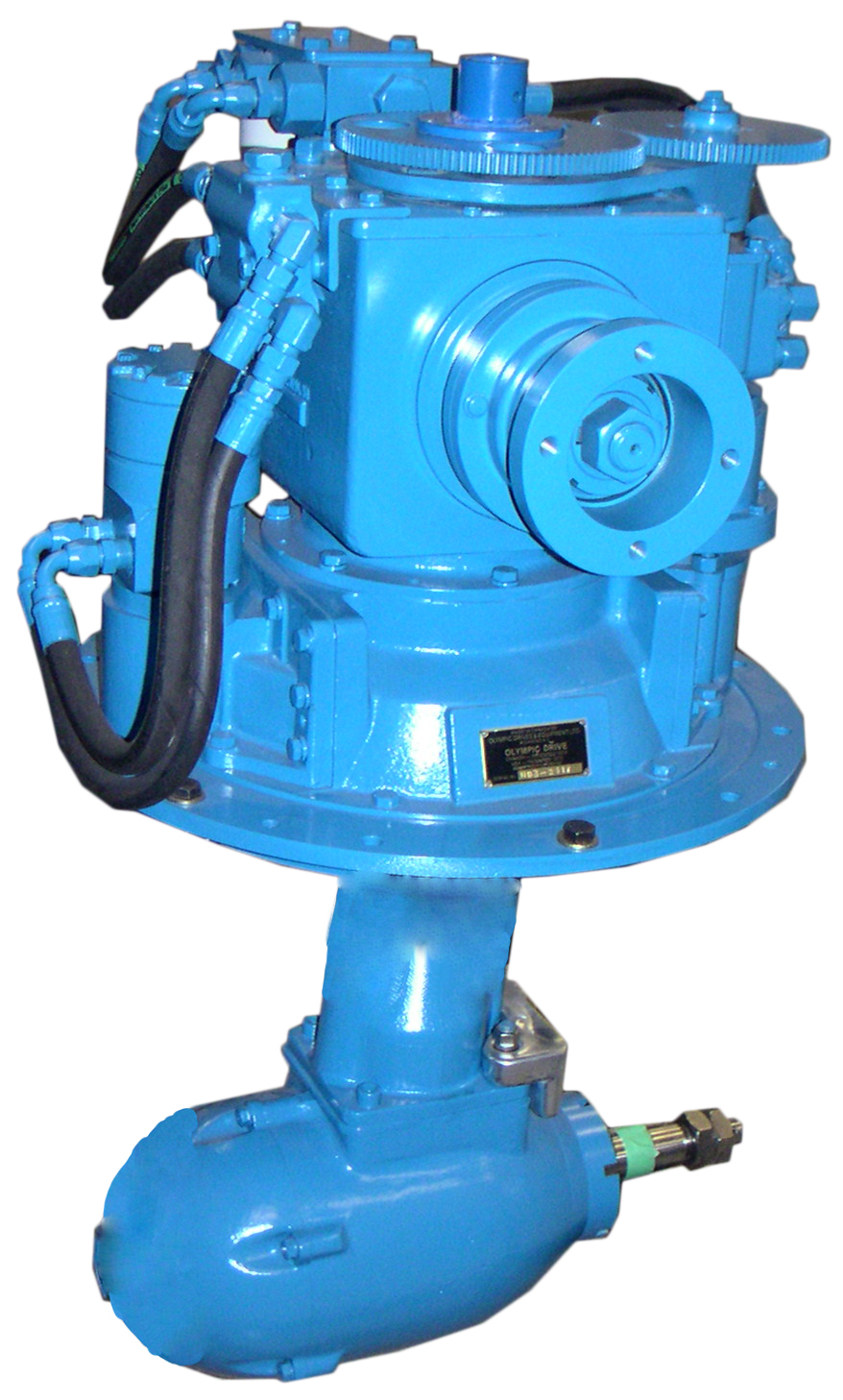

Link to Olympic HD3 Azimuth Drive Product Page Olympic Drive Model HD3, Max 200 HP (150 Kw)
Link to Olympic HD3 Azimuth Drive Product Page Olympic Drive Model SD1, Max 140 HP (105 Kw)


Hydro Drive Model UD2, Max 100 HP (75 Kw)
Olympic Drives is an Authorized Dealer for:
Wagner Marine Steering Logo Wagner Engineering, Hydraulic Steering Products
Jastram Engineering Ltd Logo Jastram Engineering Ltd
